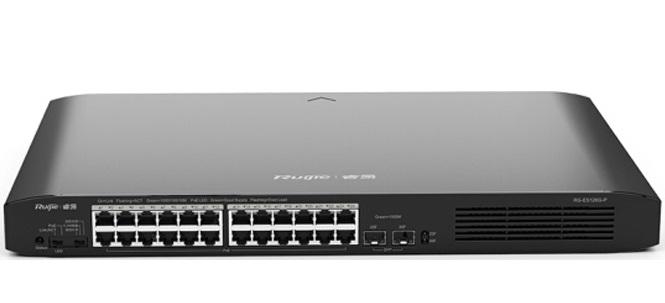

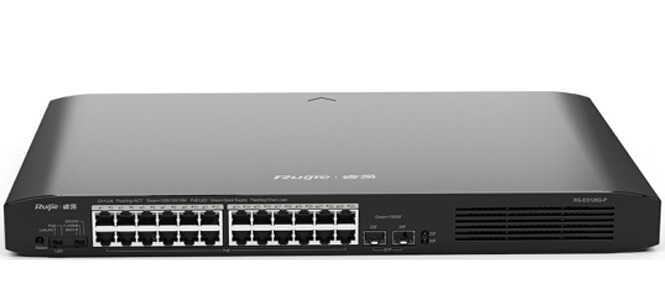

24 Port Gigabit Unmanaged Switch

Model

RG-ES109G-LP-L

RG-ES126G-LP-L

RG-ES126G-P-L

Hardware specifications

Ports

8*10/100/1000 Mbps PoE/PoE+ Ports

24*10/100/1000 Mbps PoE/PoE+ Ports

24*10/100/1000 Mbps PoE/PoE+ Ports

1*10/100/1000 Mbps uplink port

2*1000Mbps SFP port

2*1000Mbps SFP port

Operating mode

Half-duplex, full-duplex, auto-negotiation mode
Support auto MDI/MDIX

Switching capacity

18Gbps

52Gbps

52Gbps

Package forwarding rate

13.5Mpps

39Mpps

39Mpps

Power supply

100-240V AC

Surge protection

Adapter:
Common mode: ±4 kV
Differential mode: ±2 kV
Network ports:
Non-PoE ports: ±4 kV
PoE ports: ±6 kV

Switch-mode power supply:
Common mode: ±6 kV
Differential mode: ±6 kV
Network ports:
Non-PoE ports: ±4 kV
PoE ports: ±6 kV

Port Mode

“Flow Control On”
 “Flow Control Off”
 “Port Isolation”
from left to right

Power consumption

64W

220W

430W

PoE power budget

54W

180W

370W

Fan

NA

Support

Support

Dimensions (W x D x H)

206.5 x 108.5 x 28mm

440 x 205 x 43.6mm

440 x 205 x 43.6mm

Operating temperature

0℃ to 45℃

Storage temperature

-40℃ to 70℃

Operating humidity

5% to 90% RH

Storage humidity

5% to 95% RH
