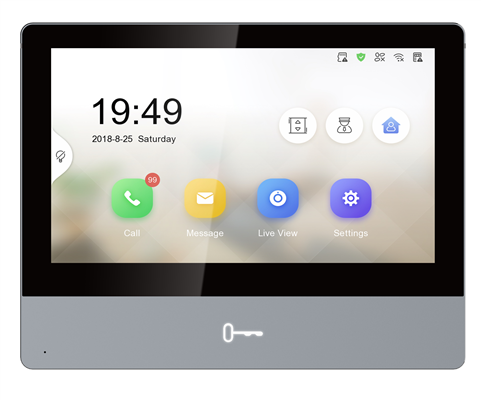

7 inc TFT LCD Dokunmatik Ekran IP Monitör

System parameters

Memory

128 MB

Flash

32 MB

Operation system

Embedded Linux operation system

Display parameters

Display screen

7-inch colorful TFT screen

Display resolution

1024  ×  600

Operation method

Capacitive touch screen

Audio parameters

Audio input

Built-in omnidirectional microphone

Audio output

Built-in loudspeaker

Audio compression standard

G.711 U

Audio compression
rate

64 Kbps

Audio quality

Noise suppression and echo cancellation

Network parameters

Wired network

10/100 Mbps self-adaptive

Network
protocol

TCP/IP, SIP, RTSP

Network interface

1 RJ-45 10/100 Mbps self-adaptive

Alarm input

8-ch alarm inputs

I/O output

2

TF card

Max to 32 G, SD 2.0 or lower version

RS485

Supported

General

Power supply

IEEE802.3af, standard PoE 12 VDC/1 A

Power supply
via detector

12 V, 200 mA

Power consumption

≤ 7 W

Working
temperature

-10 °C to 55 °C (14 °F to 131 °F)

Working humidity

10% to 90%

Dimensions

180 mm × 140 mm × 22.4 mm (7.09" ×
5.51" × 0.88")

Weight

786 g (with packaging) 600 g (without packaging)

Certification

FCC, IC, CE, C-TICK, ROHS, REACH, WEEE, UL,
CB, RCM
