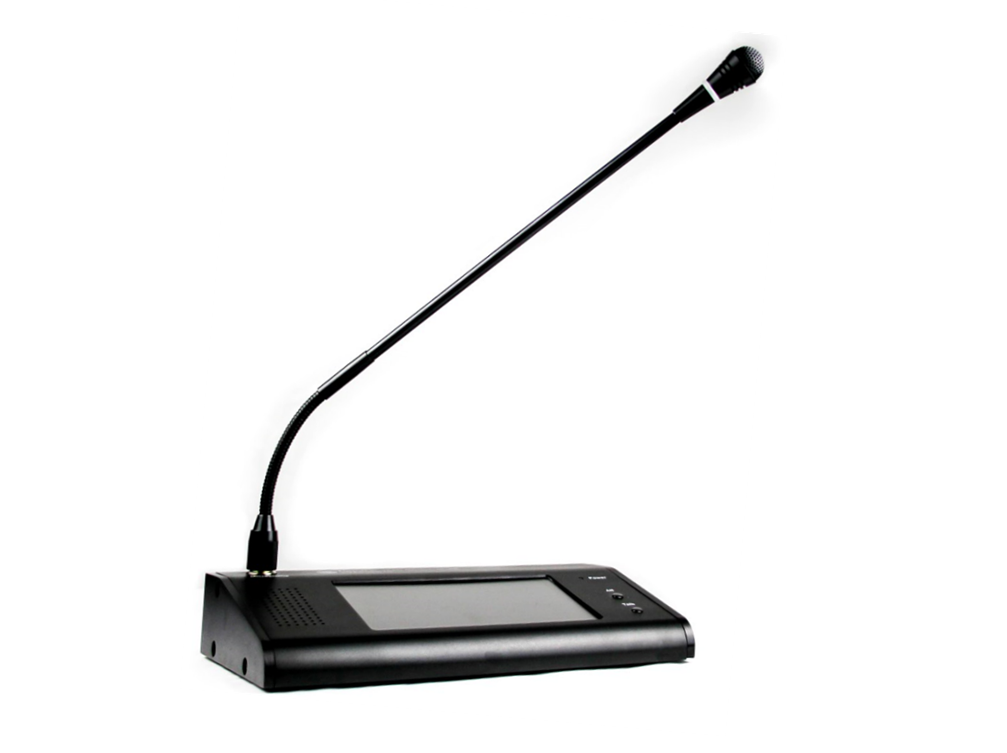

Remote Paging Microphone, Touch Screen Type

Feature:

• Touch screen remote microphone or call station.
• EN54-16 Certified remote microphone.
• Business & commercial zone live announcement use.
• Multiple zones, single zone & all zone paging.
• Each microphone of 120 zone capacity.
• Support 32 remote microphones of loop redundancy connection.
• The remote microphone unit is fully real time monitored.
• Support PPT and lock type two modes.
• Shielded CAT‑6 cable up to 600 meters.
• Power supply from EVAC-500 controller.

Description:

The DP-EVAC1000TP touch screen remote microphone or call station is EN54-16 certified and designed exclusively for DP-EVAC-1000 public address & voice evacuation system. The remote microphone is used for business and commercial live announcement to selected zones or all zones. The remote microphone is designed of 120 zone with busy & working indicators. Up to 32 units of remote microphone could be connected to the voice evacuation system via standard, shielded CAT‑6 cable and RJ45 connectors in a redundancy loop up to 600 meters. The talk button maybe a PTT or lock type pre-set by the dipswitch on the rear of the microphone. Green LED indicates the microphone and zone active status. The remote microphone is 24VDC powered by the EVAC-500 controller. The voice evacuation system is strictly follow the Construction products Regulation（EU）No 305/2011: EN54-16:2008 Voice Alarm Control and Indicating Equipment.

Specifications:
